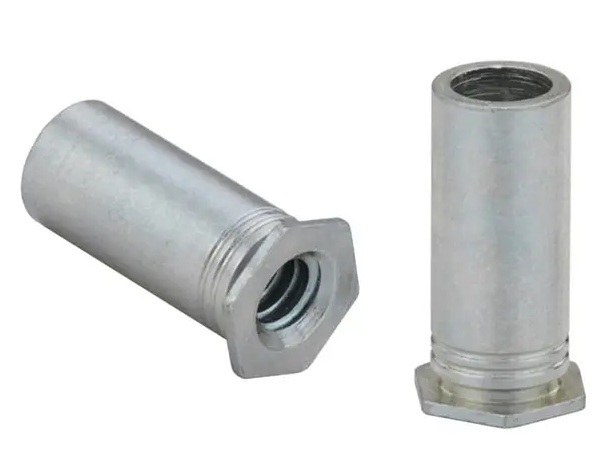

These standoffs, which use the proven self-clinching design, install with a squeeze in properly sized round holes - and become permanently mounted in the thin sheet.

PEM® brand thru-hole threaded standoffs are installed with their heads flush with one surface of the mounting sheet.
Request Information
Unit of Measure

Thread Size x Pitch

 N/A M2.5 x 0.45 - 6H

Thread Code

 N/A M2.5

Length Code

 N/A 6
Min. Sheet Thickness1 N/A 1.00 mm

Hole Size in Sheet + 0.08

 N/A 4.22 mm

C - 0.13

 N/A 4.20 mm

D ± 0.25

 N/A 0.00 mm

H Nom.

 N/A 4.8 mm

L - Length +0.05 –0.13

 N/A 6 mm
For Use in Sheet Hardness2 N/A HRB 80 (HB 150)

Thread Specification

 N/A Internal, ANSI/ASME B1.13M, 6H

Fastener Material

 N/A Heat-Treated Carbon Steel (12L14 or Equivalent)

Standard Finish

 N/A Zinc Plated, 5µm, Colorless (Clear Chromate)

CAD Supplier

 N/A PennEngineering® (PEM®)
  • 1 For maximum performance, we recommend that you use the maximum shank length for your sheet thickness.
  • 2 HRB - Hardness Rockwell “B” Scale. HB - Hardness Brinell.
